2017/10/03

Self Service Demo with Veeam Backup for Office 365 using the REST API

Just today Veeam released the 1.5 GA version of Office 365. This versions ships with a proxy-repository model introducing scalability for the bigger shops and service providers. It also features a complete REST API and I personally love it. It means that the community has a chance to extend the product without any limitations. (For those just getting started, know that by default, the REST API is not enabled, so you should enable it in the main options. You can find the main menu in the top left corner under the "hamburger" icon)


And just to demo how powerful it is, I already made a small demo. The demo basically allows you to startup a self service recovery wizard, on which a user can login in with his LDAP/AD credentials, and then restore his own mails independently from the admin. This is quite common request I get in the field where admins don't really feel comfortable poking around the end-user's mailbox even if they don't have bad intentions.

The self service demo aka "Mail Maestro" source can be found on VeeamHub . A compiled Windows version can be found here . Besides the source code, the Github also shows how you can use certificates to "secure" the connection between the end user and the server. BTW, the code only works with an on-premises exchange server and a local LDAP connection, just because I didn't had the time to set up an Office365 account etc. Most of the wizard will probably work, I'm just assuming that during restore, the credentials that are being used to restore (by default, the credentials that are being used to login) might not work.

Ok so let's try it out. When you download the compiled version, you will get the binary and the config file. Start by editing the json file with for example notepad. I removed the "vbomailbox" argument because I will supply this by command line.


Maybe some side notes. The LDAP server is of course a reference to the LDAP / AD server. To lookup the user that you want to allow to do his self service restore, we temporarily need to bind to it and lookup his account, email address and it's distinguished name. You can use a readonly user for this. The rest should be quite self explanatory, except maybe for "LocalStop". If you enable LocalStop, you can type "stop" on the command line, to cleanly close the session  from the server side. The user himself will be able to stop the wizard from the portal after logging in to indicate that he is ready. Both will clean up the restore session in VBO365 (headless Veeam Explorer).

So let's go to the command line and pass the config file. Since we removed vbomailbox, Mail Maestro will complain that it is not aware, what user you want to use in this session. You can supply it at the command line by using -vbomailbox


Let's supply a user that is being backed up



Great, the process is starting. Mail Maestro is able to find the user, start the headless Veeam Explorer session and was able to find the mailbox in the backups. You can also see that it is serving on the http://localhost:4123. Open the firewall port and replace the localhost with the server ip to grant remote access

So if the user logs in with his email address, he will be authenticated against LDAP and then hopefully the wizard will be quite self explanatory


Let's login the mailbox and delete all the mails in the inbox

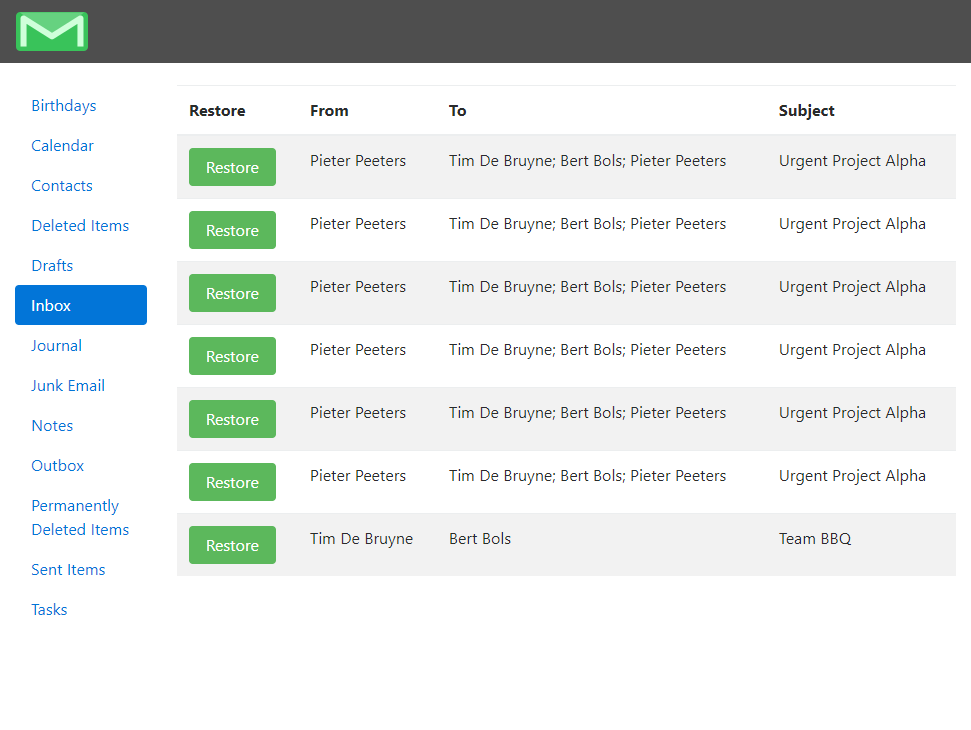

Now let's restore them from Mail Maestro by clicking the green restore button next to the Email Box

... and the mails are back

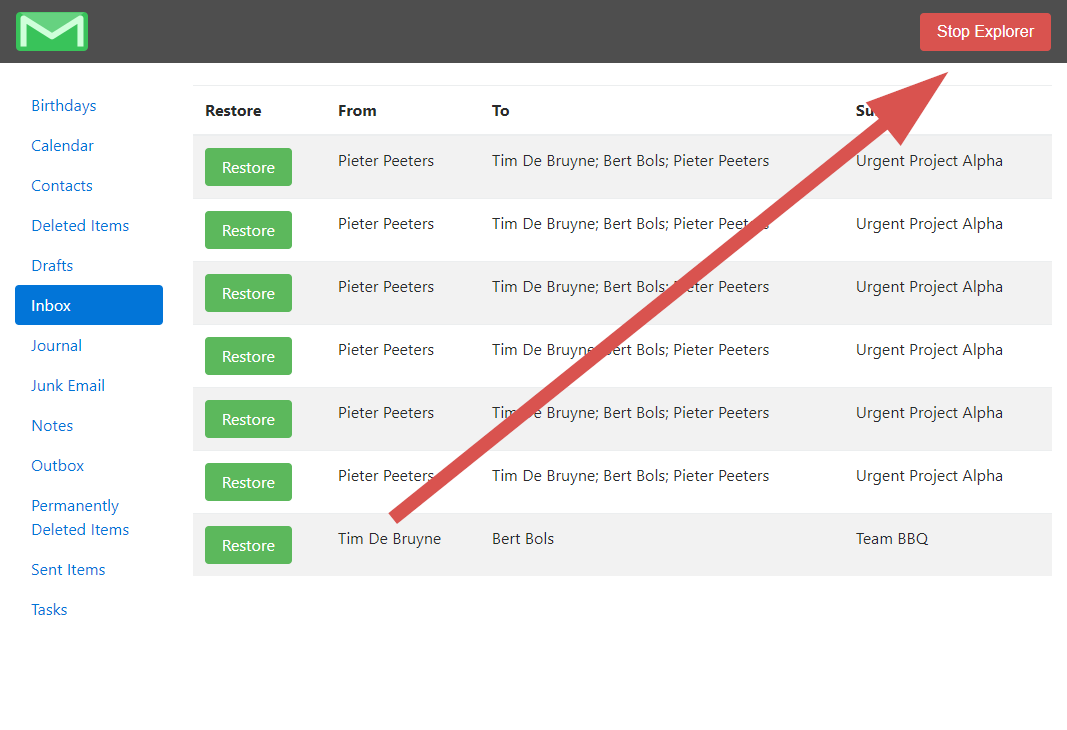

When the user is done, he can stop the portal via the button in the top right corner of the portal. I noticed that if the browser window is too small, the button might not show up. Anyway you can always stop the wizard by typing "stop" on the command line

Final notes, as with many of my projects, this is just a demo. If you feel like you could use this in production environment, please evaluate the code. This is published under MIT licenses, so basically, you can do whatever you want with it on your own risk. I hope however, that this shows how powerful the new API is and what you can do with it. I can only imagine that in the future, service providers would be able to built their own backup portal and offer Backup as a service. In fact I know my colleague Niels Engelen  has been working on such a demo in PHP.
